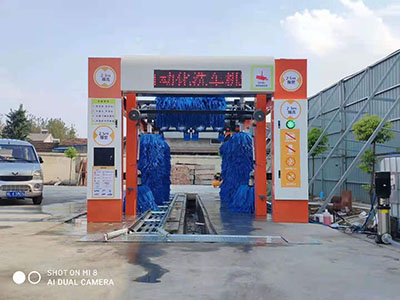

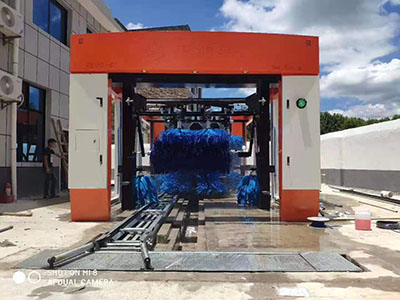

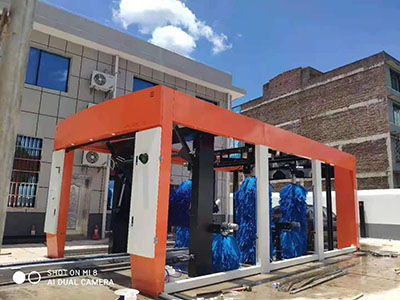

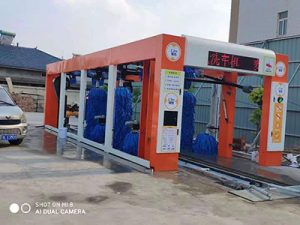

D9 Upgrade Conveyor System Car Washing Tunnel Machine With 9 Brush

Features:
1. D9 is a tunnel car washing machine, it is the upgrade version of D7, with 9 washing brushes.
2. Fast washing: can wash cars quickly and continuously, and it can wash 50-60 cars per hour.
3. Sturdy and durable.
4. Safe and effective cleaning: uses high quality EVA brush, with power to scrub off stubborn dirt without scratching paint and provides a natural polish when combined with paint-safe products.
5. Less water use. A tunnel wash uses an average of 80 liter of water per car.

Chat Now Send-Mail >

products+

hot products

Introduction:

Wash Steps: Pre-wash--High pressure water wash--Foam--Brush wash--Weak water wash--Water wax spray--Dry;
This D7 tunnel type of equipment can wash cars quickly and continuously, and it can wash 50-60 cars per hour. Its production greatly meets the needs of customers with large business sites and a large amount of car washing. Now many customers with a daily car washing volume of more than 500 cars are using this equipment,
This D7 tunnel type of equipment is sturdy and durable. Its appearance takes into account the likes of domestic and foreign customers. It covers a relatively small area, has strong adaptability to the site, and has excellent performance. It is favored by some customers who are limited by the site and want to install tunnel machines.

Specification:

Parameter/Model	D9 Tunnel-type 9 Brush	Water Supply	DN25 pipe, flow rate≥200L/min
Machine Size (mm)	L9500W3800H3440	Power Supply	AC380V 50Hz
Installation Size (mm)	L11880*W3800	Air Supply	Air pressure 0.75-0.9Mpa
Applicable Place	Gas station, Auto 4S shop, Car detailing shop	Water Consumption	145L/Car
Installation Ground	Flatness error≤10mm	Shampoo Consumption	7ML/Car
Work Efficiency	45-55 Cars/Hour	Water Wax Consumption	12ML/Car

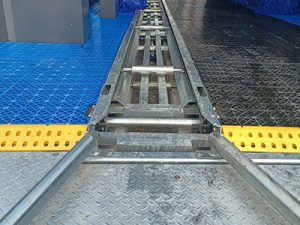

Whole plate guidance system

Integrated whole plate guidance system, automatic left and right adjustment. Rough entry, accurate guidance.
Widen the conveying track, adapt to widen the tire and extend the cleaning range. quenched galvanized track system, continuous water operation, lasting bright luster.
Integrated intelligent induction system

Dense photoelectric layout, forming a comprehensive induction network and accurately collecting vehicle parameters;
Intelligent call, real-time adjustment of follow-up car washing parameters, to achieve precise avoidance and no dead angle ultra clean cleaning effect.

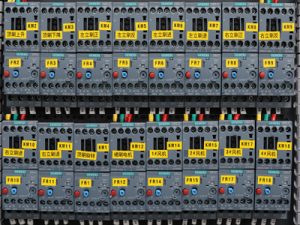

PLC control system

Control system is the brain of car washing machine - multi thread, structured programmable PLC control system, originated from Mitsubishi, Japan.

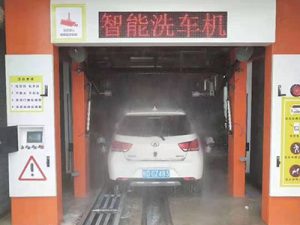

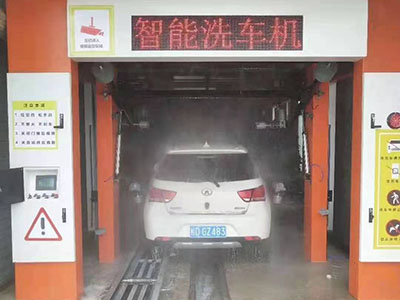

High pressure water pre washing system

Swing the water curtain to remove mud easily and clean it with motion, presenting outstanding pre washing effect.
The swing high-pressure water at the entrance optimizes the layout position. The fan-shaped water surface combined with the full coverage water curtain can easily wash away the sediment on the vehicle body.
Foam wax system

Environmental protection foam liquid: it is developed with ingenuity, decontamination and descaling, only for the safety and cleaning of car paint
Coating bright wax: hydrophobic and bright, giving your car a visible protective film. Lasting care, more than three days, bright effect

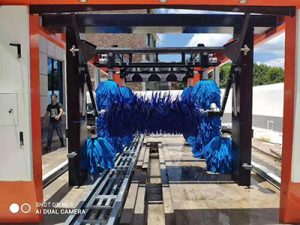

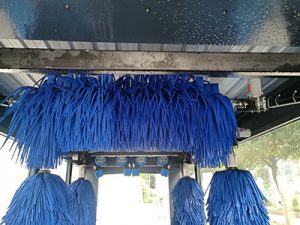

Brushing system

The skirt brush works at a low place, and the large brush is responsible at a high place. The washing matches the rhythm of the brush, and the follow-up close-up weak water system makes reasonable use of every drop of water, so as to clean and save water.

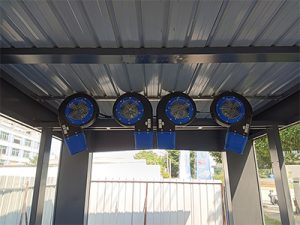

Air drying system

Low noise air drying, high-efficiency utilization, and outstanding air drying effect. Inverted V-shaped air outlet reduces bilateral wind offset, reduces wind noise, and makes reasonable use of each wind.
