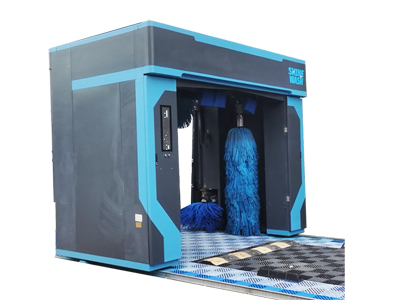

S1 Rollover 5 Brush Car Wash Machine

- - Model: S1
  - Machine Size (m): L2.2*W3.6*H2.96
  - Max. Car Size (m): L6*W2.1*H2.1
  - Standard Installation Size (m): L11*W3.7*H3.1
  - Wash Time: 2.5-5min/Car
  - Suitable Cars: Car / Jeep / minivan
    with less than 7 seats
  - Water Consumption: 60-80L/Car
  - Top Brush: 1
  - Big Vertical Brush: 2
  - Side Brush: 2

Chat Now Send-Mail >

products+

hot products

Short Introduction of S1 Rollover 5 Brush Car Wash Machine

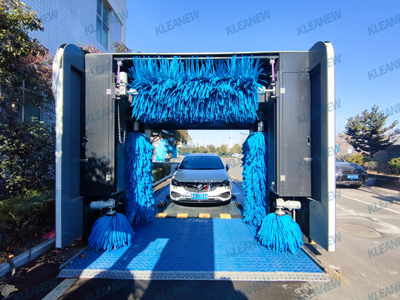

The rollover car wash machine is an automated car washing equipment, which is mainly composed of a frame, a flushing system and other parts. As long as the operator presses the "start" button, the system will automatically wash the car. And complete the entire process of washing (clean water + detergent, clean water + wax) and air drying at one time. The system provides users with a control operation panel to control the automatic operation of the system through the operation panel. It can also operate a single independent process by operating the sub-program button.

Specification

Model

Shampoo & Water Wax
Consumption

10-30ML/Car

Machine Size (m)

L2.2*W3.6*H2.96

Electricity Consumption

0.6KWH/Car

Max. Car Size (m)

L6*W2.1*H2.1

Power Supply

380V 50HZ 20KVA

Standard Installation
Size (m)

L11*W3.7*H3.1

Power

25KW

Suitable Cars

Car / Jeep / minivan
with less than 7 seats

Top Brush

Wash Time

2.5-5min/Car

Big Vertical Brush

Water Consumption

60-80L/Car

Side Brush

Product advantages:

1. Unattended for 24 hours, saving time and economize labour.
2. More than 90% of the parts are imported, such as PLC, reducing motor, control system, etc.
3. Hot-galvanized mainly frame, module design, mortise and tenon structure.
4. Intelligent anti-collision system, self protection system, emergency stop system.
5. 5 brushes with foam spraying and water wax spraying system.
6. Equipped with winter antifreeze drainage function to prevent the pipe freezing.
