S1 Reciprocating Gantry Roller Carwash MachineS1 Reciprocating Gantry Roller Carwash MachineS1 Reciprocating Gantry Roller Carwash MachineS1 Reciprocating Gantry Roller Carwash Machine

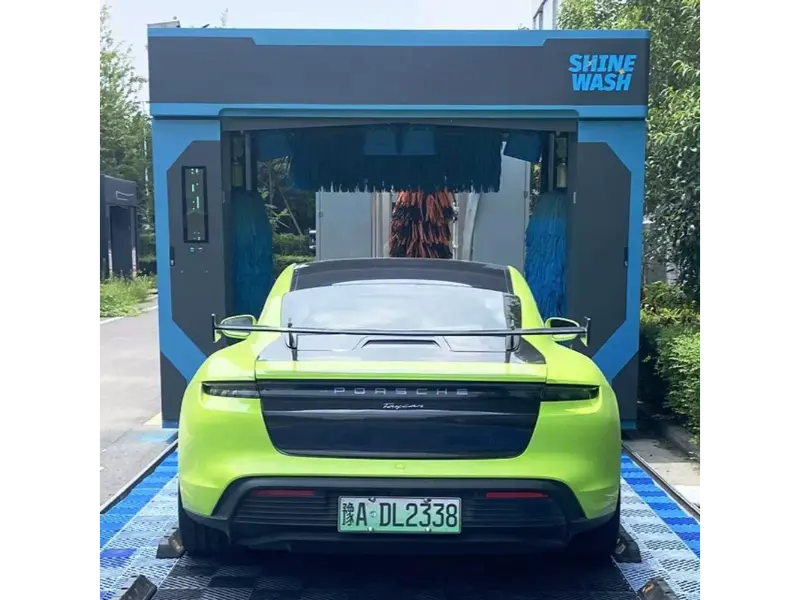

S1 Reciprocating Gantry Roller Carwash Machine

Product Name: S1 reciprocating gantry roller carwash machine
Product Feature:
1. Unattended for 24 hours, saving time and economize labour.
2. More than 90% of the parts are imported, such as PLC, reducing motor, control system, etc.
3. Hot-galvanized mainly frame, module design, mortise and tenon structure.
4. Intelligent anti-collision system, self protection system, emergency stop system.
5. 5 brushes with foam spraying and water wax spraying shstem.
Mathched with winter antifreeze drainage function to prevent the pipe freezing.

products+

S1 rollover car wash machine advantages:

  • Intelligent frequency conversion system, and Intelligent liquid proportioning system, more energy-saving.
  • Fault self-test system, more reassuring.
  • Adopted with the hot galvanizing process technology, anti-corrosion and anti rust life can reach 15-20 years.
  • The imported brush with special quality has a long service life, ensuring that it will not hurt the car paint and can be thoroughly cleaned.
  • Adopt the imported electronic components that ensure the machine low failure rate, high stability and long life time.

S1 rollover car wash machine specification:

Applicable cars models

Sedans, SUVS, MPV, etc.

Fan dryer power

4*5.5KW=22KW

No. Of brushes

Top horizontal brush *1 pcs

Side vertical Brushes * 2 pcs ( Left*1 & Right*1)

Skirt brushes * 2 pcs ( Left*1 & Right* 1)



Fan drying mode



Fixed fan drying

Foaming system

Foam spraying

Average water consumption

60L-80L/car

Wax system

Wax spraying

Voltage

3-phase,5 wires 380V/50HZ

Max. Washing size

L≤6000*W2100*H2000mm

Washing time

2.5min.—3min./car

Machine size

L2200*L3600*H2960mm

Compressed air pressure

0.8Mpa

Installation space

L11000*W4000*H3100mm

Electricity consumption

0.6KWH/car

S1 rollover car wash machine video:

  • car washing machine equipment blower
    Big power fan drying motor

    4pcs*5.5KW high pressure drying motor, quick drying and ash deposition, low failure rate and long life time;

  • Car washing machine equipment brush
    EVA soft brush

    Brush self-cleaning technology, no water, no dust, no sand, not easy to deform, soft without damaging car paint;

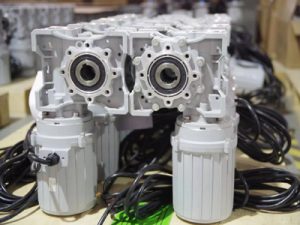

  • Geared motor for car washing machine equipment
     Waterproof reducing motor

    Well-known high quality brand, fully enclosed integrated design, waterproof grade IP68, lifetime 20 years;

  • Overheat protector for car washer equipment
    SIEMENS control system

    Germany SIEMENS famous brand, the system is stable, with low failure rate, long life time;

  • Car washing machine equipment proximity switch
    PEPPERL+FUCHS sensor

    Germany P+F international brand, waterproof level IP69K, accurately measure the car driving distance, predict the car location;

  • Car washing machine equipment nozzle
    Stainless steel pipe & nozzles

    Using high pressure fan drying motor, high wind speed, high pressure, to achieve rapid fan drying effect, perform segmented and powerful fan drying on the whole car;

SHINEWASH S1 vs S3 Gantry Roller Car Wash Machines

The SHINEWASH S1 model is a cost-effective solution perfect for small car wash businesses. It consumes just 150–200 liters of water per vehicle and features a durable 3mm hot-galvanized steel frame designed to last up to 15 years.

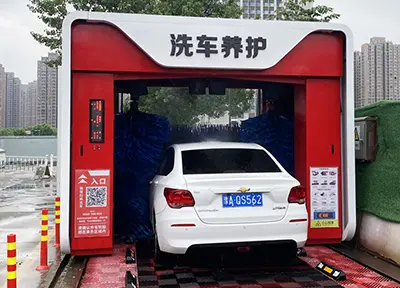

s3 rollover car wash machine

On the other hand, the SHINEWASH S3 gantry car wash machine is built for high-traffic commercial operations, boasting a thicker 4–5mm steel structure, IP68-rated waterproof motors with an extended 20-year lifespan, and maintenance-free Japanese NSK bearings.

automated rollover car wash machine (1)

While both models are equipped with reliable Mitsubishi PLC control systems, the S3 stands out with its premium components, including Siemens sensors and Banner photoelectric detection, offering superior reliability and reduced downtime.

Whether you're starting a small car wash bay or operating a busy car wash station, SHINEWASH has the right machine to match your business needs. If you are interested in soft touch car wash machine, there are more details in this article "What Is a Soft Touch Car Wash and Are Soft Touch Car Washes Safe?"


FAQ

Can the S1 car wash operate safely without staff supervision?

Yes, the S1 supports 24/7 unmanned operation thanks to its PLC-controlled automation, intelligent anti-collision systems, and emergency stop safeguards for collision-free cleaning

How does the S1 minimize long-term maintenance costs?

Over 90% of components are imported (e.g., SIEMENS controls, P+F sensors), and the hot-galvanized steel frame resists corrosion for 15–20 years, ensuring low failure rates

Are the S1’s brushes safe for vehicle paint?

The 5 EVA soft brushes use self-cleaning technology to avoid scratches, while foam/water wax systems ensure gentle yet thorough cleaning
