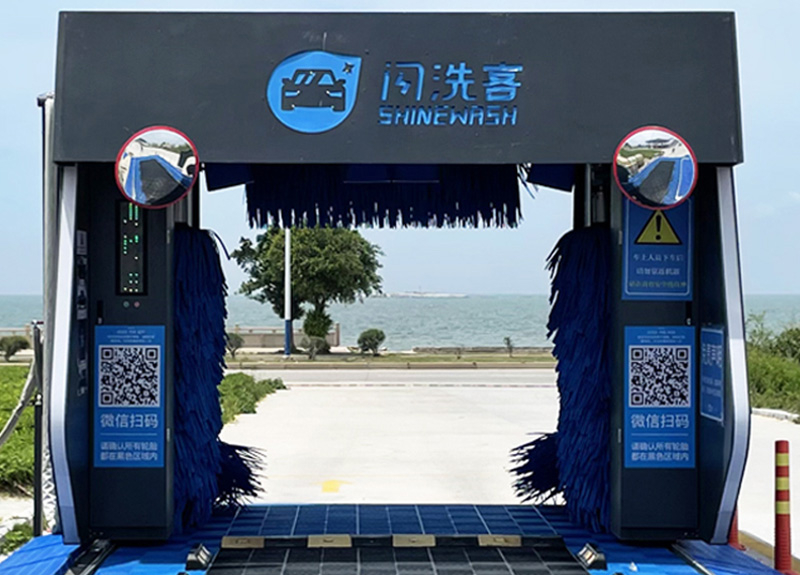

S9 Gantry Car Wash Machine with 5 Brushes (4)S9 Gantry Car Wash Machine with 5 Brushes (4)S9 Gantry Car Wash Machine with 5 Brushes (4)

S9 Gantry Car Wash Machine with 5 Brushes

      • Model: S9
      • Machine Size (m): L3.41*W3.7*H3
      • Max. Car Size (m): L6*W2.1*H2.1
      • Standard Installation Size (m): L11*W3.7*H3.1
      • Wash Time: 2.5-5min/Car
      • Suitable Cars: Car / Jeep / minivan
        with less than 7 seats
      • Water Consumption: 60-80L/Car
      • Top Brush: 1
      • Big Vertical Brush: 2
      • Side Brush: 2

products+

Short Introduction of S9 Gantry Car Wash Machine

A gantry car wash machine, also known as a rollover car wash, is a type of automated car wash system that keeps the vehicle fixed while the washing equipment rotates around it. The machine is often made up of a huge frame, or gantry, that contains various components like brushes, nozzles, and blowers. The gantry swings back and forth over the vehicle, performing various cleaning duties such as soaping, scrubbing, rinsing, and drying. This style of vehicle wash is popular because it makes effective use of space and water while also providing a thorough and consistent clean with minimal human participation.

Key Features and Benefits

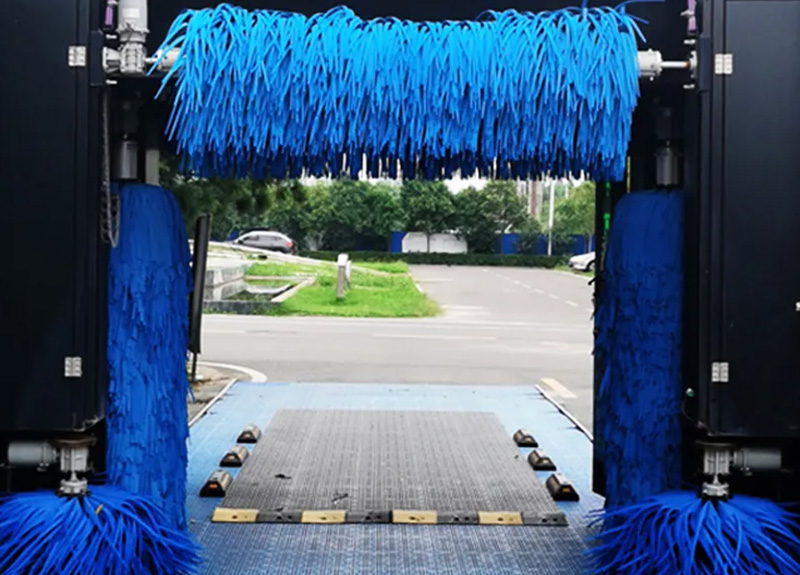

Precision 5-Brush Cleaning System

  • Equipped with 1 top brush, 2 vertical brushes, and 2 side brushes for full 360° vehicle coverage.
  • Adjustable brush pressure automatically adapts to different vehicle shapes to ensure a gentle, scratch-free clean.

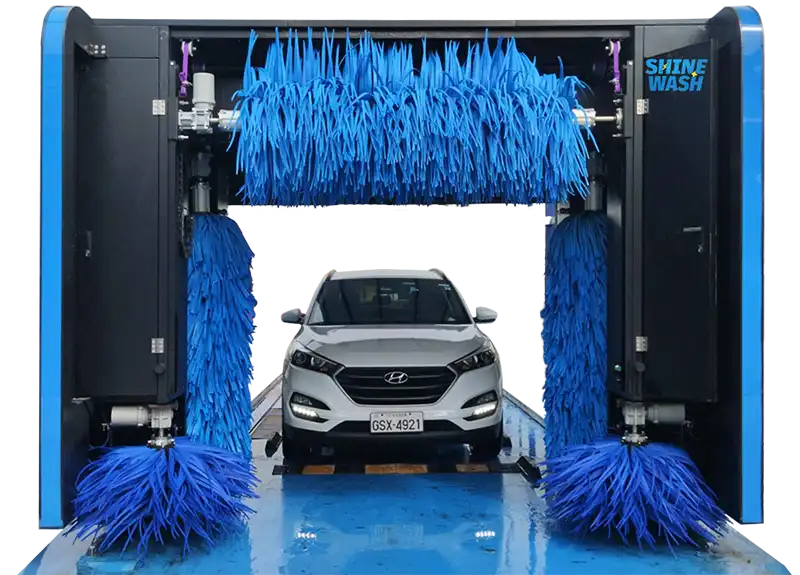

automated rollover car wash machine (1)



Fast and Efficient Operation

  • Uses 60–80 liters of water per car.
  • Completes a full wash in 2.5 to 5 minutes, allowing you to clean 10–15 vehicles per hour.

    Durable and Modular Design

    • Made with 3mm galvanized steel and high-temperature phosphating for excellent corrosion resistance.
    • Modular structure makes installation, repairs, and upgrades quick and easy.

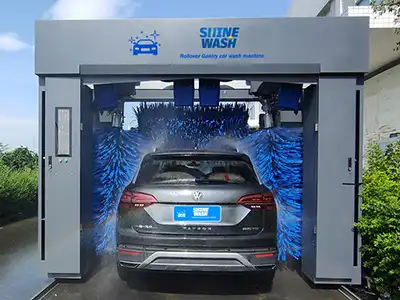

    S9 Gantry Car Wash Machine with 5 Brushes (4)

    Smart Control System

    • Powered by PLC automation for remote control and customizable wash settings (foam, rinse, wax, etc.).
    • Built-in sensors detect problems like low water pressure or brush wear, helping reduce downtime.

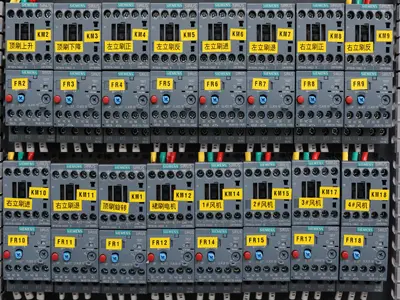

    plc control system

    Specification

    Model S9 Shampoo & Water Wax
    Consumption
    10-30ML/Car
    Machine Size (m) L3.41*W3.7*H3 Electricity Consumption 0.6KWH/Car
    Max. Car Size (m) L6*W2.1*H2.1 Power Supply 380V 50HZ 20KVA
    Standard Installation
    Size (m)
    L11*W3.7*H3.1 Power 25KW
    Suitable Cars Car / Jeep / minivan
    with less than 7 seats
    Top Brush
    Wash Time 2.5-5min/Car Big Vertical Brush
    Water Consumption 60-80L/Car Side Brush

    Why Choose the S9 Gantry Car Wash Machine?

    The S9 Gantry Car Wash Machine is a cost-effective, versatile, and customer-friendly solution for today’s car wash operations. Here’s what makes it a top choice:

    Cost-Effective Performance

    The S9 significantly reduces water usage—by more than 30% compared to manual washing—through advanced water recycling systems and optimized cleaning cycles. Its modular design, featuring corrosion-resistant materials and replaceable brush components, helps lower maintenance costs and ensures long-term durability.

    Water-Circulation-Equipment

    Versatile Applications

    Designed for flexibility, the S9 fits seamlessly into various business settings, including gas stations, urban car washes, and fleet service centers. It accommodates a wide range of vehicles, from sedans and SUVs to minivans, and its compact footprint is ideal for high-traffic or limited-space locations.

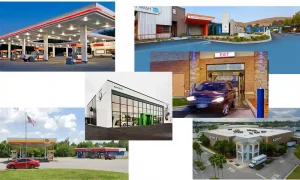

    Locations of aumatic car washes

    Improved Customer Experience

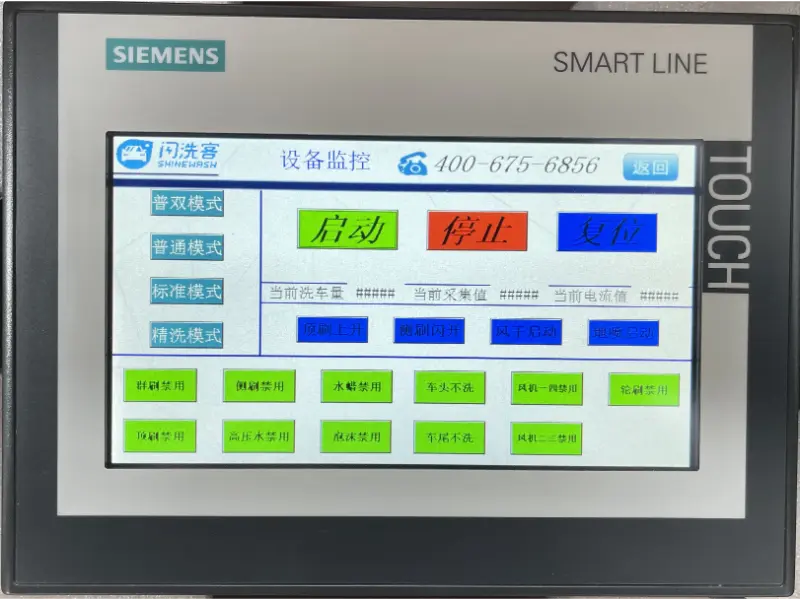

    With an intuitive touchscreen interface, customers can easily select their preferred wash packages. The machine’s quiet operation and sleek design make it attractive to both eco-conscious and tech-savvy users. Fast wash cycles—ranging from 2.5 to 5 minutes—deliver consistent results, encouraging repeat visits and customer loyalty.

    IMG_3071



    Why Choose SHINEWASH?

    1. Strict quality requirements on both frame and core components.

    2. PLC control system instead of MCU to ensure work effciency and less faut.

    3. EVA brushes to reach best cleaning effect with long life time.

    4. Fast air dry to save time, energy, and increase car throughput.

    5. Factory direct supply, making customization more easier and flexible.

    6. Not only a manufacturer but also a user, Shinewash runs hundreds of washing points in China. We have first hand experience and customer feedback to improve continuosly.

    7. Self developed payment kiosk and backstage management system to realize 24/7 unattended service and real time monitoring.

    8. Remote online realtime fault detection of equipment failures.

    9. 3 years waranty, life long technical support, professional and in-time response.

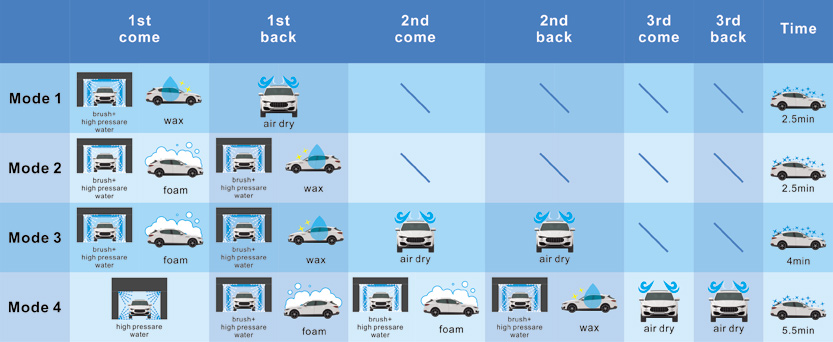

    Rollover 5 Brush Car Wash Machine Washing Mode

    gantry-car-washing-machine-wash-mode

    The Difference of S3 S9 Gantry Car Wash Machine

    The S9 Gantry Car Wash Machine and S3 Rollover Car Wash Machine are designed to meet different operational requirements. The S9 features a 5-brush system—comprising one top brush, two large vertical brushes, and two side brushes—optimized for vehicles up to 6 meters long, such as SUVs and minivans. It delivers a full wash in 2.5 to 5 minutes, using approximately 60 to 80 liters of water per vehicle.

    In contrast, the S3 is built for space efficiency and streamlined automation, making it ideal for compact cars and high-traffic urban locations. While the S9 includes advanced PLC control systems that support remote diagnostics and customizable wash programs, the S3 focuses on quick installation and lower initial investment.

    Both models feature corrosion-resistant construction, but they differ in scalability. The S9 supports modular upgrades such as air dryers and foam wax systems, offering more flexibility for growing businesses.

    If you are interested in more details of gantry car wash machine, just read this article "What Is a Soft Touch Car Wash and Are Soft Touch Car Washes Safe?"

    Video of S9 Rollover 5 Brush Car Wash Machine



    Shiping Photos



    S9 Gantry Car Wash Machine with 5 Brushes

    FAQs

    What types of vehicles can the S9 gantry car wash machine accommodate?

    It supports sedans, SUVs, and minivans with up to 7 seats, handling vehicles up to 6m long × 2.1m wide × 2.1m tall.

    What warranty and support does Shinewash provide?

    Shinewash offers a 3-year warranty, lifetime technical support, and remote troubleshooting to resolve 90% of issues within 3 minutes.

    How much water does the S9 Gantry Car Wash Machine consume per wash?

    The S9 uses 60–80 liters of water per vehicle thanks to advanced water recycling systems, reducing water consumption by over 30% compared to manual washing methods.
