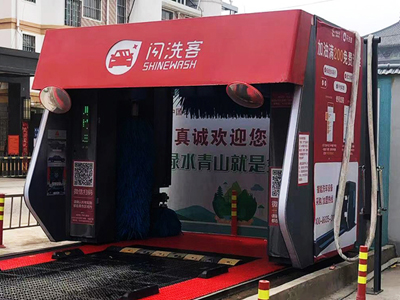

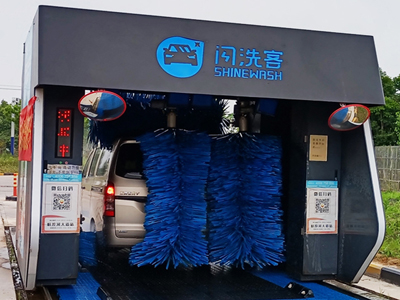

S9 Rollover Car Washing Equipment With 5 Brushes
Product Name: S9 rollover car wash machine
Product Feature:
1. Unattended for 24 hours, saving time and economize labour.
2. More than 90% of the parts are imported, such as PLC, reducing motor, control system, etc.
3. Hot-galvanized mainly frame, module design, mortise and tenon structure.
4. Intelligent anti-collision system, self protection system, emergency stop system.
5. 5 brushes with water washing，foam spraying and wax spraying system.
Mathched with winter antifreeze drainage function to prevent the pipe freezing.
products+
hot products
Product advantages:
- Intelligent frequency conversion system, and Intelligent liquid proportioning system, more energy-saving.
- Fault self-test system, more reassuring.
- Adopted with the hot galvanizing process technology, anti-corrosion and anti rust life can reach 15-20 years.
- The imported brush with special quality has a long service life, ensuring that it will not hurt the car paint and can be thoroughly cleaned.
- Adopt the imported electronic components that ensure the machine low failure rate, high stability and long life time.
Specification:
|
Applicable cars models |
Sedans, SUVS, MPV, etc. |
Fan dryer power |
4*5.5KW=22KW |
|
No. Of brushes |
Top horizontal brush *1 pcs Side vertical Brushes * 2 pcs ( Left*1 & Right*1) Skirt brushes * 2 pcs ( Left*1 & Right* 1) |
Fan drying mode |
Fixed fan drying |
|
Foaming system |
Foam spraying |
Average water consumption |
60L-80L/car |
|
Wax system |
Wax spraying |
Voltage |
3-phase,5 wires 380V/50HZ |
|
Max. Washing size |
L≤6000*W2100*H2000mm |
Washing time |
2.5min.—3min./car |
|
Machine size |
L3410*L3700*H3000mm |
Compressed air pressure |
0.8Mpa |
|
Installation space |
L11000*W4000*H3100mm |
Electricity consumption |
0.6KWH/car |
-
Big power fan drying motor
4pcs*5.5KW high pressure drying motor, quick drying and ash deposition, low failure rate and long life time;
-
EVA soft brush
Brush self-cleaning technology, no water, no dust, no sand, not easy to deform, soft without damaging car paint;
-
SITI waterproof reducing motor
Italy SITI internaional brand, fully enclosed integrated design, waterproof grade IP68, lifetime 20 years;
-
SIEMENS control system
Germany SIEMENS famous brand, the system is stable, with low failure rate, long life time;
-
PEPPERL+FUCHS sensor
Germany P+F international brand, waterproof level IP69K, accurately measure the car driving distance, predict the car location;
-

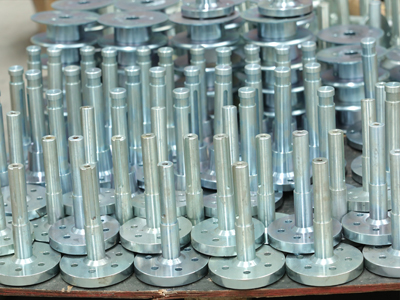

Stainless steel bearing
304 stainless steel, high pressure resistant, rust proof, bright and durable;
