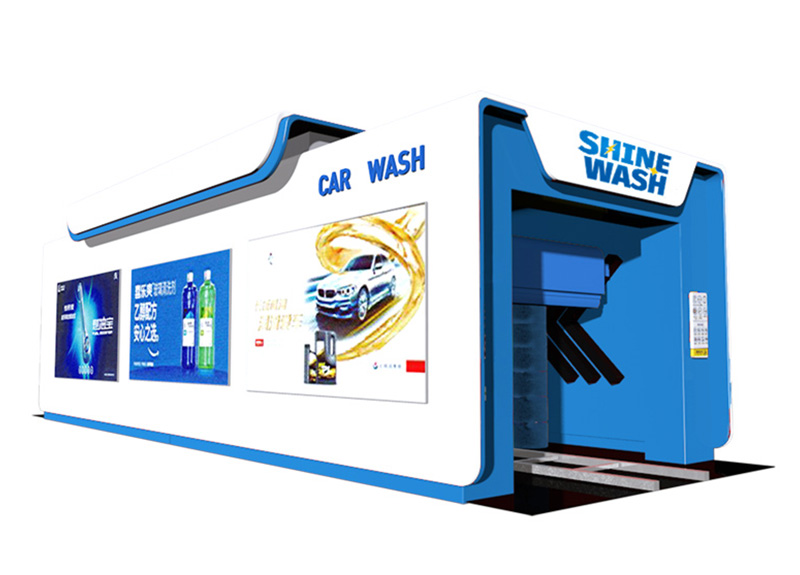

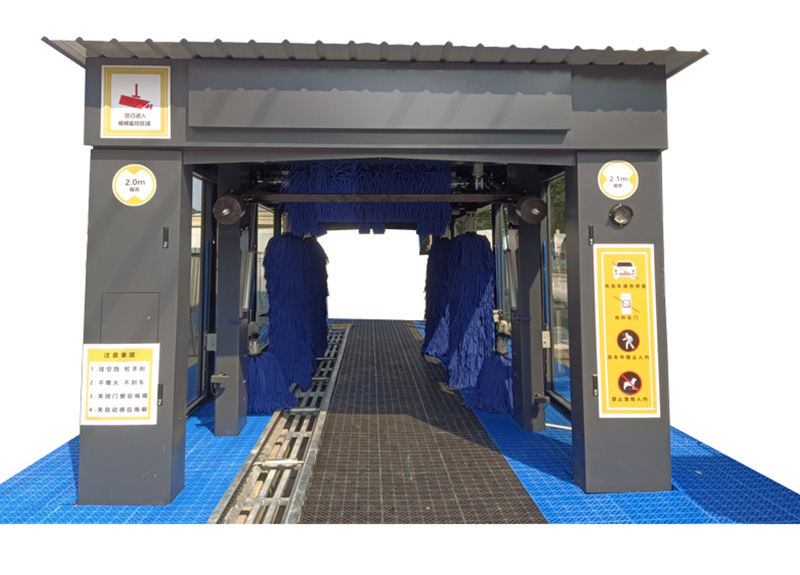

Tunnel Car Wash Machine
-
- Model: Q9、Q11、Q14
- Machine Size (m): L(12.5-17.5)*W4*H3
- Max. Car Size (m): L≤unlimited*W≤2.3*H≤2.1
- Installation Size (m): L(24-30)*W4.5*H3.2
- Wash Speed: 40-100 Cars/hour
- Suitable Cars: Sedans, SUVS, MPV, etc.
- Water Consumption: 80-150L
- Foam Consumption: 7ML/Car
products+
Short Introduction of Tunnel Car Wash Machine
Tunnel car wash machine is a "high-tech partner" that is particularly popular in car beauty shops nowadays. It's super easy to use, it looks stylish, and best of all, it's super gentle on your car's paint when you wash it, and it's almost harmless.
The washing speed of this type of tunnel car wash machine is super fast. It takes a little more than 2 minutes to wash a car, but if you wash the car in succession, it is faster, especially for those who have to wash a lot of cars every day. For example, the shops need to wash more than 100 cars a day.

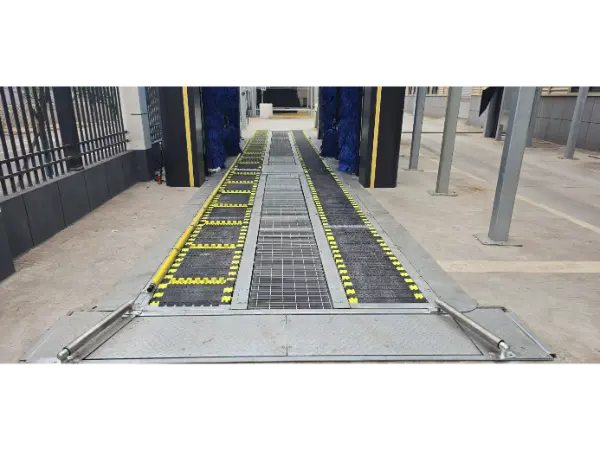

How does the tunnel car wash machine work? It's simple. When the car goes in, it will automatically bring the car to the track. First, use a high-pressure water gun to wash away the small sand and dust on the car, just like giving the car a shower. Then, spray a lot of foam and soft EVA brushes, give the car gentle SPA from all sides, even the edges and corners. Then, spray the car with a bright coat of water-soluble protectant to make the car look more shiny. Finally, the car is blown dry with strong winds, and the whole process is directed by the computer. You don't need to worry about anything. It's convenient and labor-saving.
Why Invest in an Automatic Car Wash Tunnel Machine?
In today's fast-paced world, car wash businesses are under increasing pressure to deliver fast, efficient, and high-quality services. One of the smartest investments for high-traffic locations—such as gas stations, urban plazas, or dedicated car wash centers—is an automatic car wash tunnel machine. These commercial-grade systems combine advanced technology with high throughput, making them a go-to solution for scaling up operations and maximizing returns.
Core Advantages of Automatic Tunnel Car Wash Machines
1. Exceptional Operational Efficiency
High Throughput: Tunnel car wash systems can wash 80 to 120 cars per hour, processing each vehicle in just 3 to 5 minutes. This makes them ideal for handling peak traffic with ease.
Labor Savings: Full automation significantly reduces the need for manual labor, cutting staffing costs by up to 50% compared to hand washes or semi-automatic setups.
2. Superior Cleaning Performance

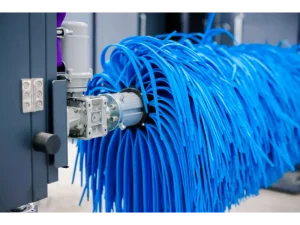

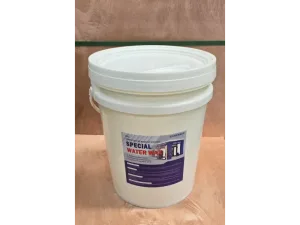

Paint-Friendly Technology: Soft EVA brushes paired with pH-balanced cleaning solutions ensure a spotless wash without causing damage to the vehicle’s paint.

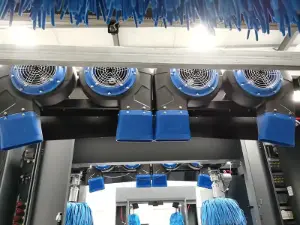

Multi-Stage Cleaning: Modern tunnel car wash machines offer comprehensive services including pre-soaking, wheel scrubbing, waxing, and spot-free drying using high-powered 45KW blowers.
3. Sustainability and Cost Control

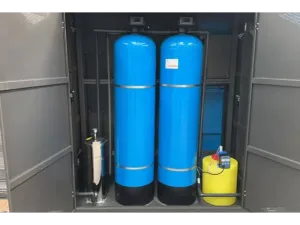

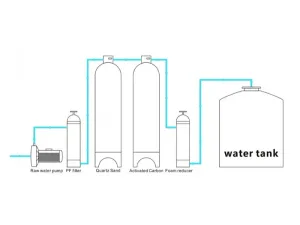

Water Recycling: Many systems reclaim 70% to 80% of used water, reducing water usage to just 80 liters per wash—a major plus in regions with water scarcity or high utility rates.

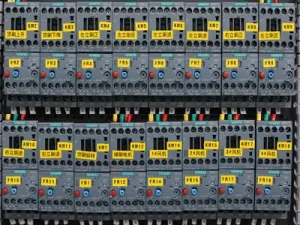

Energy Efficiency: Smart PLC (Programmable Logic Controller) systems optimize energy consumption, helping reduce electricity usage and operational costs by 15% to 25%.
Cost Breakdown and ROI Potential
Initial Investment
Basic automatic car wash tunnel systems start at around $75,000, offering standard brush-based cleaning and drying features. Advanced models, which include touchless wash technology, ceramic coating sprayers, and enhanced control systems, can exceed $150,000 depending on configuration.
Installation Costs
Site preparation, including concrete work, drainage systems, plumbing, and electrical setups, generally adds $20,000 to $50,000 to the total investment. These costs vary by region, land condition, and power requirements.
Return on Investment (ROI)
Thanks to high daily wash volumes and reduced operating costs, most high-traffic tunnel systems achieve break-even in just 18 to 24 months. With typical margins ranging from 30% to 50%, this type of machine delivers both fast payback and long-term profitability.
The Differences of Q9 Q11 Q14 Tunnel Car Wash Machine

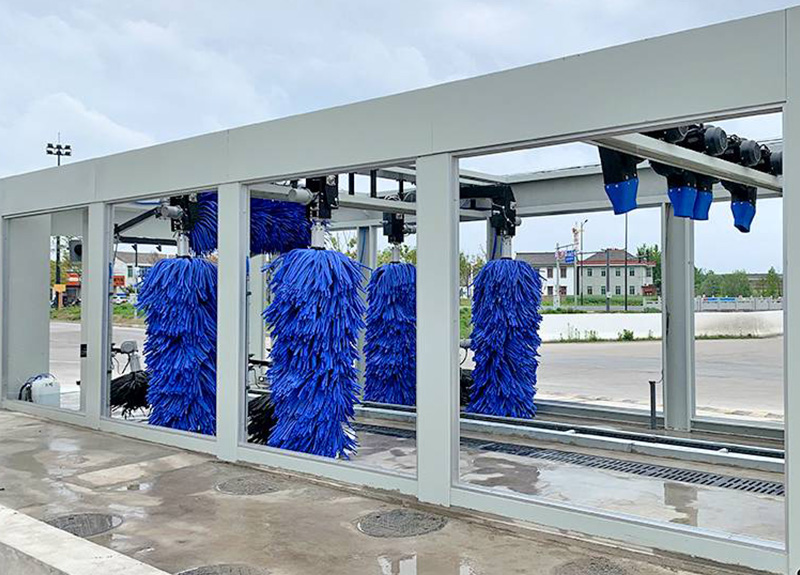

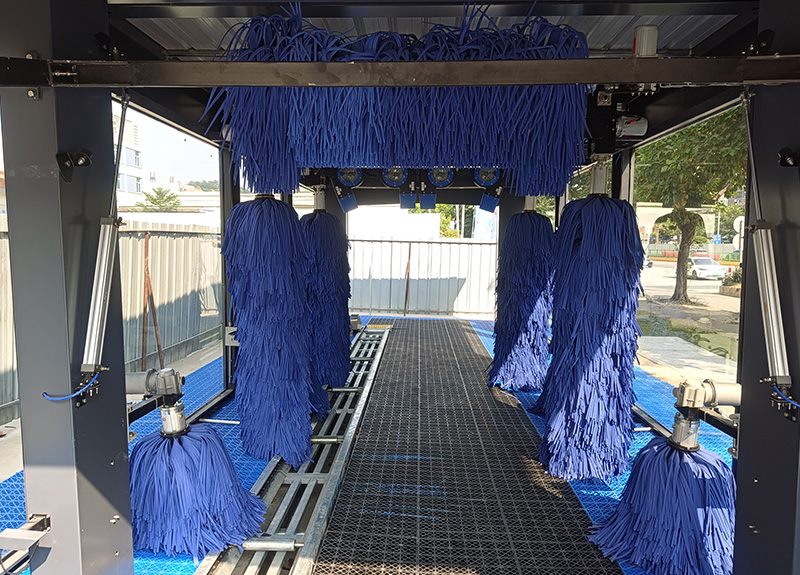

According to the number of EVA brushes, we divide our tunnel car wash machine to 3 types, Q9, Q11, Q14. The number of brushes is different, the size of the equipment and installation size, the car wash speed will be different. Q9 has 1 top brush, 4 vertical brushes, 4 skirt brushes. Q11 has 1 top brush, 4 vertical brushes, 4 skirt brushes, and 2 horizontal wheel brushes. Q14 has 1 top brush, 4 vertical brushes, 4 skirt brushes, 2 horizontal wheel brushes, and 3 dry brushes. Four 5.5kw fans, plus two 7.5KW fans (can be replaced with 5.5KW).
Specifications of Q9 Q11 Q14 Tunnel Car Wash Machine
Model | 9 Brushes Tunnel type Q9 |
11 Brushes Tunnel type Q11 | 14 Brushes Tunnel type Q14 | ||||||||||||||
Machine Size (m) | L12.5*W4*H3 | L15*W4*H3 | L17.5*W4*H3 | ||||||||||||||
Max. Car Size (m) | L≤unlimited*W≤2.3*H≤2.1 | ||||||||||||||||
Installation Size (m) | L24×W4.5×H3.2 | L27×W4.5×H3.2 | L30×W4.5×H3.2 | ||||||||||||||
Suitable Cars | Sedans, SUVS, MPV, etc. | ||||||||||||||||
Wash Speed | 60 cars/hour | 60-80 cars/hour | 80-100 cars/hour | ||||||||||||||
Water Consumption | 80-150L/car | 80-150L/car | 80-150L/Car | ||||||||||||||
Foam Consumption | 7ML/Car | 7ML/Car | 7ML/Car | ||||||||||||||
Water Wax Consumption | 12ML/Car | 12ML/Car | 12ML/Car | ||||||||||||||
Electricity Consumption | 0.6KWH/Car | 0.6KWH/Car | 0.6KWH/Car | ||||||||||||||
Power Supply | 380V/50Hz/45KW | 380V/50Hz/45KW | 380V/50Hz/50KW | ||||||||||||||
Fan Drying Motor | SIX Groups drying motor: 45KW | ||||||||||||||||
Top Brush | 1 | 1 | 1 | ||||||||||||||
Big Vertical Brush | 4 | 4 | 4 | ||||||||||||||
Side Brush | 4 | 4 | 4 | ||||||||||||||
Horizontal Wheel Brush | / | 2 | 2 | ||||||||||||||
Dry brush | 3 |
Key Takeaways
Cost Efficiency: The Q9 model tunnel car wash machine offers the most affordable entry point, starting at $75,000, making it ideal for small to mid-sized car wash businesses. However, its scalability is limited compared to larger systems.

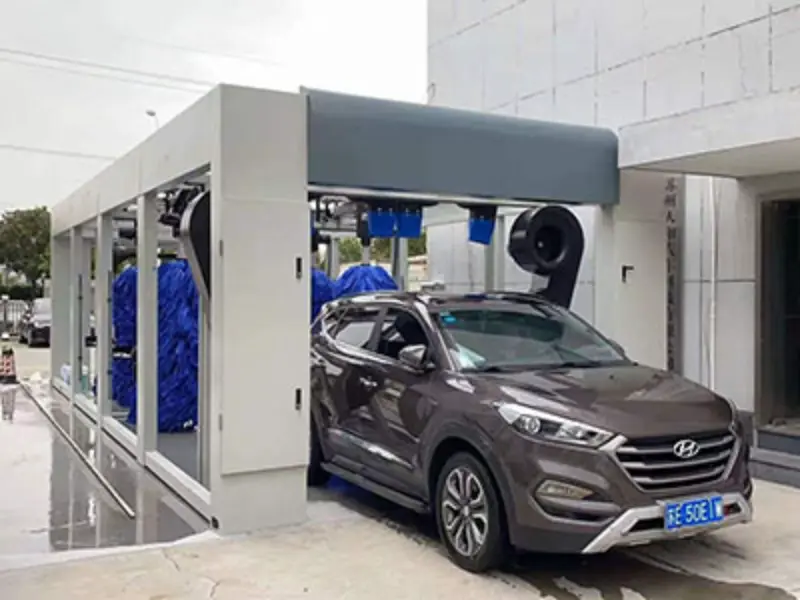

Mid-Tier Flexibility: The Q11 model car wash tunnel machine provides an excellent balance between performance and cost, featuring upgraded wheel-cleaning functions and delivering 20% higher throughput than the Q9—perfect for growing operations.
Premium ROI: The Q14 model, starting from $120,000, is designed for high-volume commercial sites. With advanced drying capabilities and superior capacity, it offers strong returns for operators looking to maximize throughput and customer satisfaction.
For an in-depth analysis of tunnel car wash, explore our full guide "What Is a Tunnel Car Wash and Are Tunnel Car Washes Safe?"
Video of Tunnel Car Wash Machine
About SHINEWASH
Shinewash is a technology enterprise integrating R&D, production, sales, after-sales and operation in China. We have almost 10 years’ experience. Our main products are tunnel car wash machine, rollover car wash machine, touchless car wash machine and truck wash machine. We are first class enterprise because we not only produce the equipment, but also operate the equipment.
Our car wash machine has three-year warranty. The current failure rate is 1 in 10,000, and 90% of the faults can be repaired by mobile phones or computers. You don’t need to worry about the installation problems too. Shinewash provides different services to you. We can also accept customization according to your requirements.
Final Thoughts
Investing in an automatic car wash tunnel machine is a game-changer for businesses looking to boost efficiency, cut costs, and deliver top-tier service. With the right equipment and support partner, you can transform a high-traffic location into a profitable and sustainable operation.
Get in touch with Shinewash today to explore models, pricing, and a tailored plan for your car wash business.
