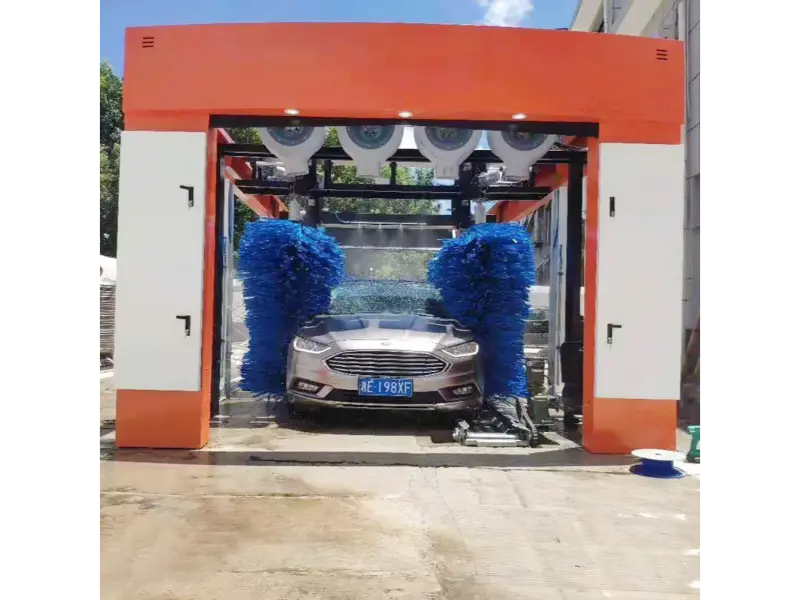

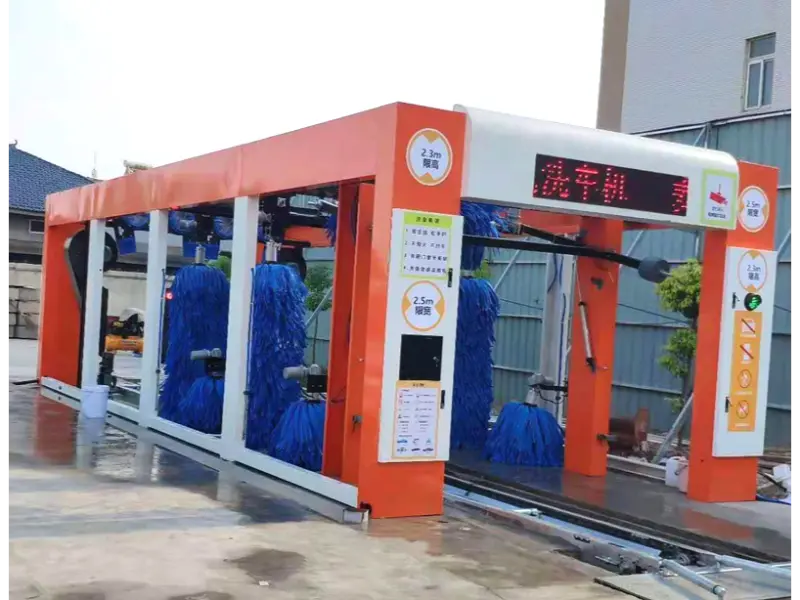

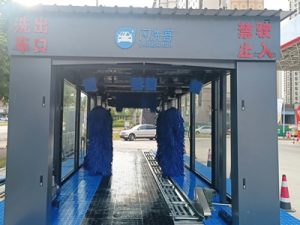

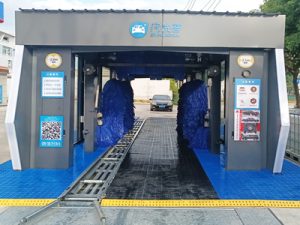

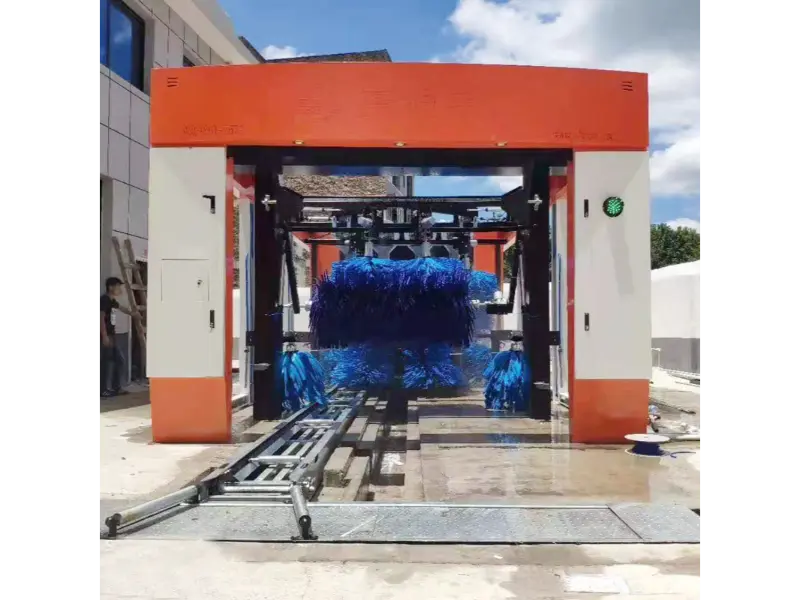

Tunnel Car Washing Machine 9 brushes Q9
Product Name: Tunnel Car Washing Machine 9 brushes Q9
Product Feature:
1. Fast car washing, high automation, safe and convenient.
2. More than 90% of the parts are imported, such as PLC, reducing motor, control system, etc.
3. Hot-galvanized mainly frame, module design, mortise and tenon structure.
4. Intelligent anti-collision system, self protection system, emergency stop system.
5. 9 brushes with foam spraying and water wax spraying shstem.
6.5.high work efficiency, low failure rate and easy maintenance.
products+
Q9 Tunnel car wash machine Videos:
Q9 Tunnel car wash machine advantages:
- Intelligent frequency conversion system, and Intelligent liquid proportioning system, more energy-saving.
- Fault self-test system, more reassuring.
- Adopted with the hot galvanizing process technology, anti-corrosion and anti rust life can reach 15-20 years.
- The imported brush with special quality has a long service life, ensuring that it will not hurt the car paint and can be thoroughly cleaned.
- Adopt the imported electronic components that ensure the machine low failure rate, high stability and long life time.
Q9 Tunnel car wash machine specification:
|
Applicable cars models |
Sedans, SUVS, MPV, etc. |
Fan dryer power |
4 groups drying motor 35KW |
|
No. Of brushes |
Top horizontal brush *1 pcs Side vertical Brushes * 4 pcs ( Left*2 & Right*2) Skirt brushes * 4 pcs ( Left*2 & Right* 2) |
Fan drying mode |
Fixed fan drying |
|
Foaming system |
Foam spraying |
Average water consumption |
80L-150L/car |
|
Wax system |
Wax spraying |
Voltage |
3-phase,5 wires 380V/50HZ |
|
Max. Washing size |
L: Unlimited*W2300*H2100mm |
Washing time |
2.5min.—3min./car |
|
Machine size |
L12500*L4000*H3000mm |
Compressed air pressure |
0.8Mpa |
|
Installation space |
L22000*W4500*H3200mm |
Electricity consumption |
0.6KWH/car |
-

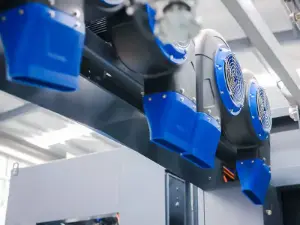

Big power fan drying motor
4pcs*5.5KW high pressure drying motor, quick drying and ash deposition, low failure rate and long life time;
-
EVA soft brush
Brush self-cleaning technology, no water, no dust, no sand, not easy to deform, soft without damaging car paint;
-

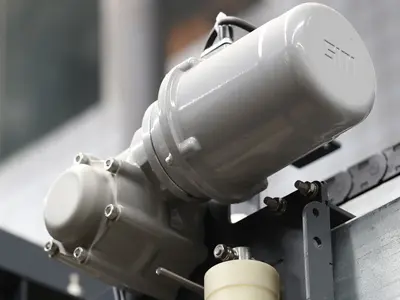

Waterproof reducing motor
Well-known high quality brand, fully enclosed integrated design, waterproof grade IP68, lifetime 20 years;
-

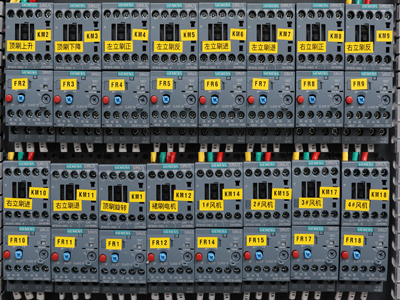

SIEMENS control system
Germany SIEMENS famous brand, the system is stable, with low failure rate, long life time;
-
PEPPERL+FUCHS sensor
Germany P+F international brand, waterproof level IP69K, accurately measure the car driving distance, predict the car location;
-

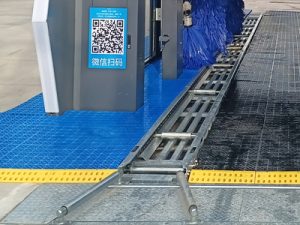

Guide Rails
Adjustable angle guide rails help the car get the right washing area;
FAQs:
Does the Q9 tunnel car wash machine provide a touchless wash option?
While the Q9 primarily uses brushes for cleaning, it can be paired with touchless wash technology for additional options, such as pre-washing with high-pressure water jets to remove heavy dirt before the brushes make contact.
Can I customize the wash settings on the Q9 tunnel car wash?
Yes, the Q9 offers customizable wash cycles, including options for water pressure, soap application, and drying systems. You can adjust the settings based on customer preferences or vehicle conditions.
What kind of warranty does the Q9 Tunnel Car Wash Machine come with?
The Q9 typically comes with a 3-year warranty for the machine’s parts and components, with extended options available for longer-term service contracts. For full warranty details, please consult us.
