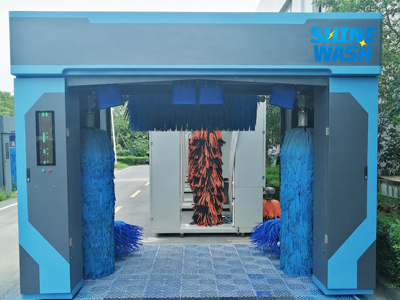

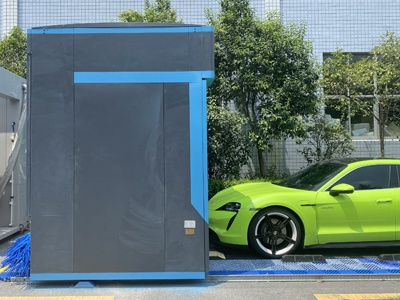

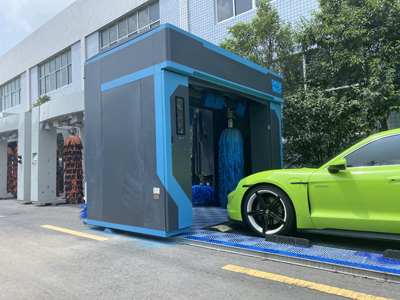

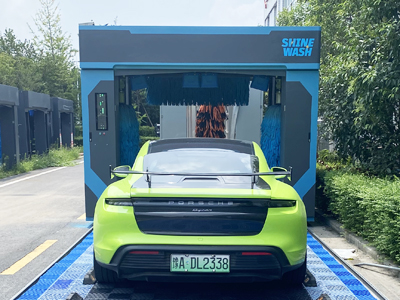

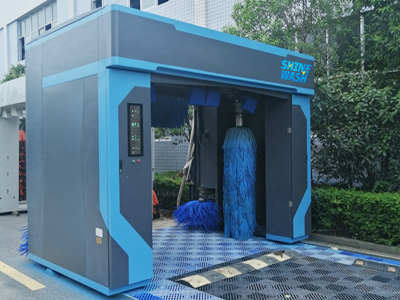

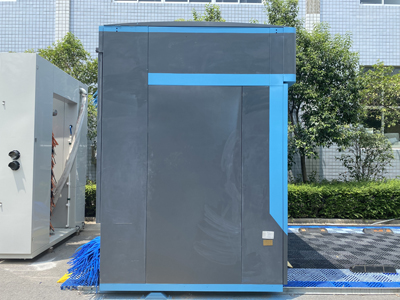

Fully Automatic Rollover Car Washing Machine S1

Product Name: Fully automatic rollover car washing machine S1
Product Feature:
1. Unattended for 24 hours, saving time and economize labour.
2. More than 90% of the parts are imported, such as PLC, reducing motor, control system, etc.
3. Hot-galvanized mainly frame, module design, mortise and tenon structure.
4. Intelligent anti-collision system, self protection system, emergency stop system.
5. 5 brushes with foam spraying and water wax spraying shstem.
Mathched with winter antifreeze drainage function to prevent the pipe freezing.

Chat Now Send-Mail >

products+

hot products

S1 rollover car wash machine advantages:

Intelligent frequency conversion system, and Intelligent liquid proportioning system, more energy-saving.
Fault self-test system, more reassuring.
Adopted with the hot galvanizing process technology, anti-corrosion and anti rust life can reach 15-20 years.
The imported brush with special quality has a long service life, ensuring that it will not hurt the car paint and can be thoroughly cleaned.
Adopt the imported electronic components that ensure the machine low failure rate, high stability and long life time.

S1 rollover car wash machine specification:

Applicable cars models	Sedans, SUVS, MPV, etc.	Fan dryer power	4*5.5KW=22KW
No. Of brushes	Top horizontal brush 1 pcs Side vertical Brushes 2 pcs ( Left1 & Right1) Skirt brushes * 2 pcs ( Left1 & Right 1)	Fan drying mode	Fixed fan drying
Foaming system	Foam spraying	Average water consumption	60L-80L/car
Wax system	Wax spraying	Voltage	3-phase,5 wires 380V/50HZ
Max. Washing size	L≤6000W2100H2000mm	Washing time	2.5min.—3min./car
Machine size	L2200L3600H2960mm	Compressed air pressure	0.8Mpa
Installation space	L11000W4000H3100mm	Electricity consumption	0.6KWH/car

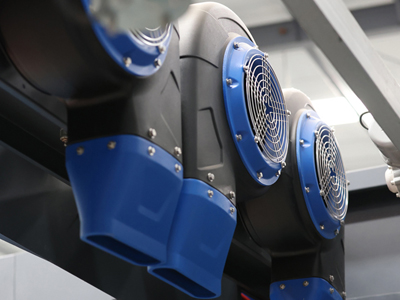

Big power fan drying motor

4pcs*5.5KW high pressure drying motor, quick drying and ash deposition, low failure rate and long life time;

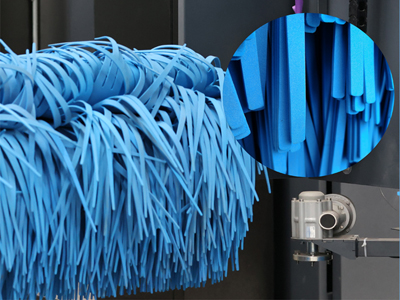

EVA soft brush

Brush self-cleaning technology, no water, no dust, no sand, not easy to deform, soft without damaging car paint;

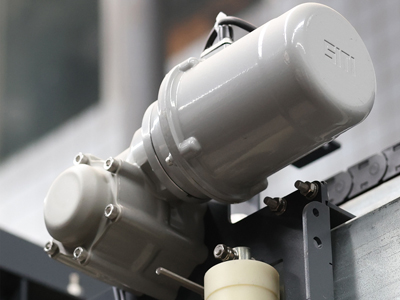

SITI waterproof reducing motor

Italy SITI internaional brand, fully enclosed integrated design, waterproof grade IP68, lifetime 20 years;
SIEMENS control system

Germany SIEMENS famous brand, the system is stable, with low failure rate, long life time;
PEPPERL+FUCHS sensor

Germany P+F international brand, waterproof level IP69K, accurately measure the car driving distance, predict the car location;
Stainless steel pipe & nozzles

Using high pressure fan drying motor, high wind speed, high pressure, to achieve rapid fan drying effect, perform segmented and powerful fan drying on the whole car;
