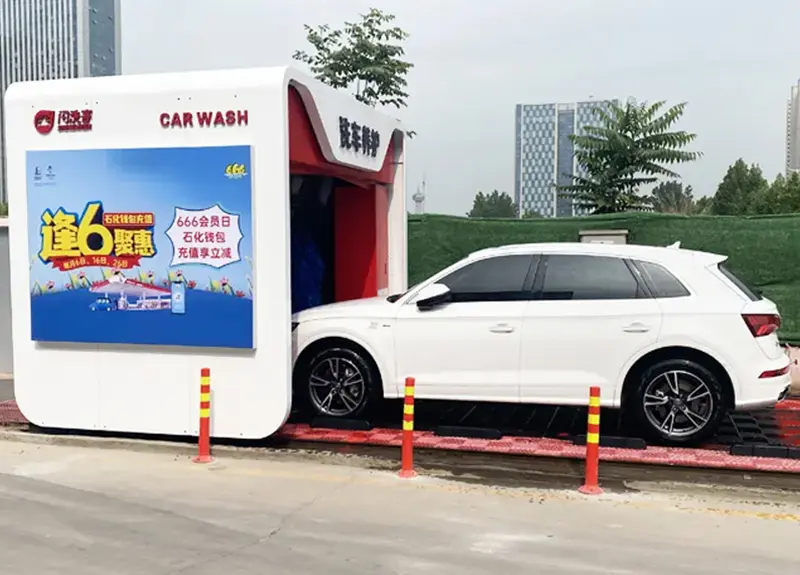

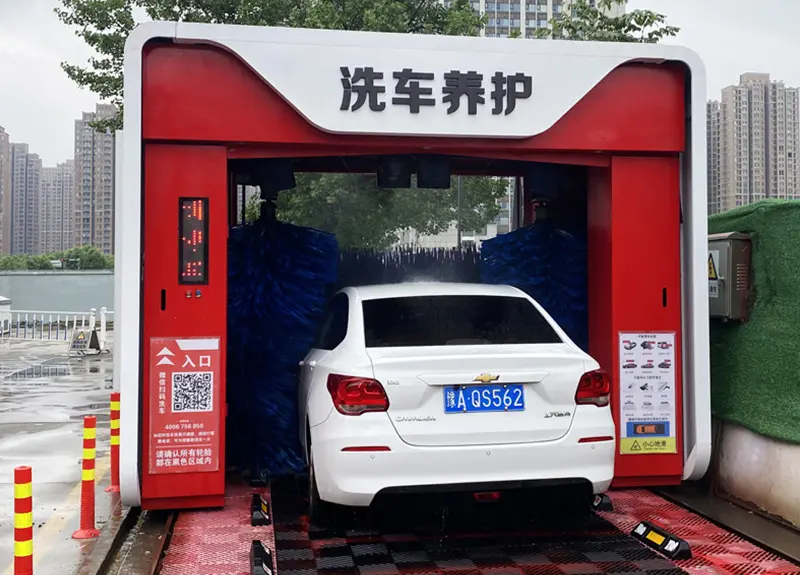

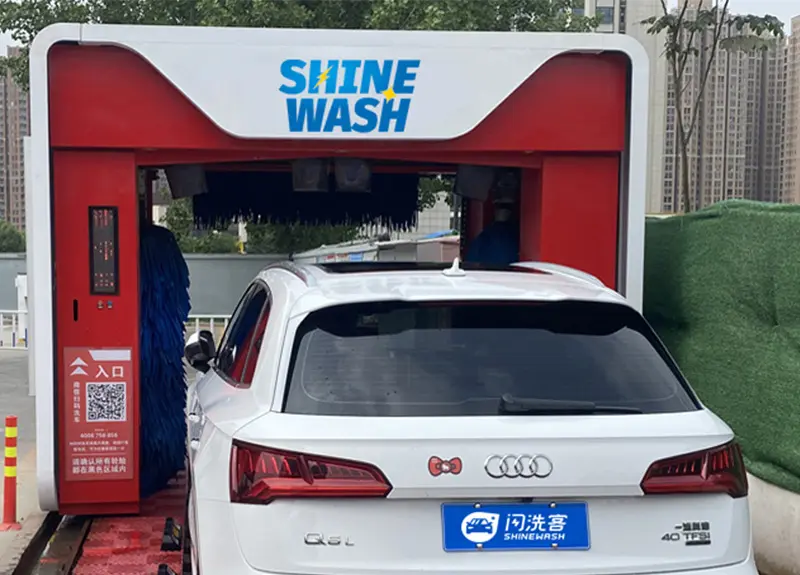

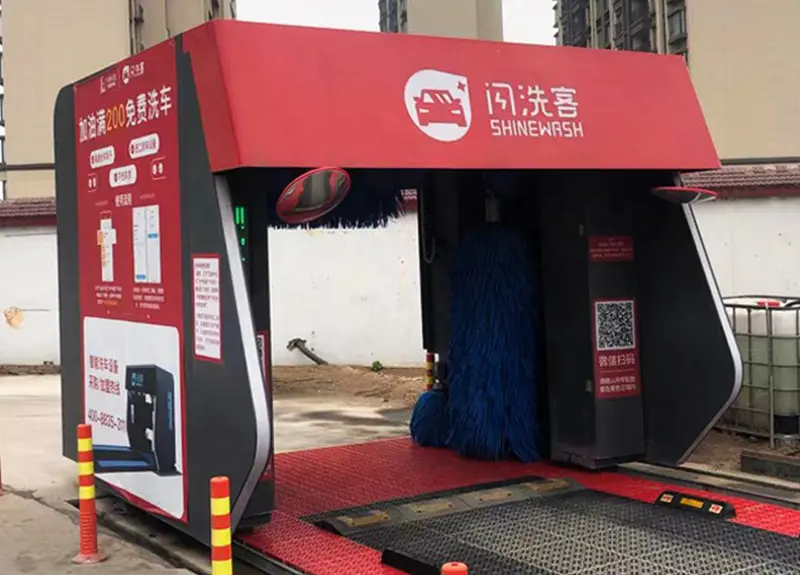

S3 Rollover 5 brush car wash machine (2)

Intelligent Automatic Car Washing Machine S3

Product Name: Intelligent automatic car washing machine S3
Product Feature:
1. Unattended for 24 hours, saving time and economize labour.
2. More than 90% of the parts are imported, such as PLC, reducing motor, control system, etc.
3. Hot-galvanized mainly frame, module design, mortise and tenon structure.
4. Intelligent anti-collision system, self protection system, emergency stop system.
5. 5 brushes with water washing, foam spraying and water wax spraying system.
Mathched with winter antifreeze drainage function to prevent the pipe freezing.

products+

S3 rollover car wash machine advantages:

  • Intelligent frequency conversion system, and Intelligent liquid proportioning system, more energy-saving.
  • Fault self-test system, more reassuring.
  • Adopted with the hot galvanizing process technology, anti-corrosion and anti rust life can reach 15-20 years.
  • The imported brush with special quality has a long service life, ensuring that it will not hurt the car paint and can be thoroughly cleaned.
  • Adopt the imported electronic components that ensure the machine low failure rate, high stability and long life time.

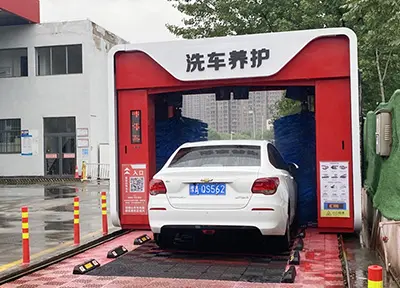

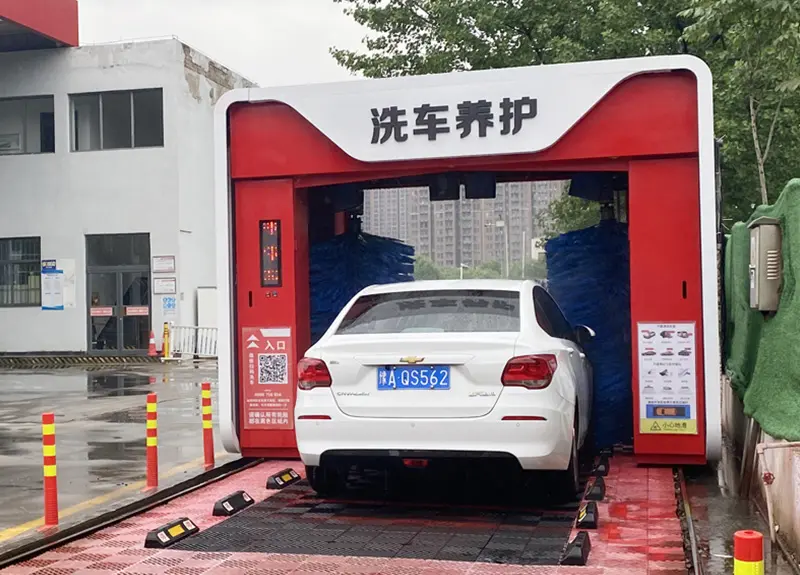

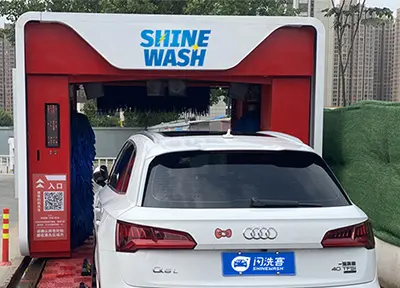

  • s3 rollover car wash machine
  • s3 rollover car wash machine
  • s3 rollover car wash machine

S3 rollover car wash machine video:

S3 car washing machine specification:

Applicable cars models

Sedans, SUVS, MPV, etc.

Fan dryer power

4*5.5KW=22KW

No. Of brushes

Top horizontal brush *1 pcs

Side vertical Brushes * 2 pcs ( Left*1 & Right*1)

Skirt brushes * 2 pcs ( Left*1 & Right* 1)



Fan drying mode



Fixed fan drying

Foaming system

Foam spraying

Average water consumption

60L-80L/car

Wax system

Wax spraying

Voltage

3-phase,5 wires 380V/50HZ

Max. Washing size

L≤6000*W2100*H2000mm

Washing time

2.5min.—3min./car

Machine size

L2850*L3850*H3000mm

Compressed air pressure

0.8Mpa

Installation space

L11000*W4000*H3100mm

Electricity consumption

0.6KWH/car

  • car wash equipment manufacturers

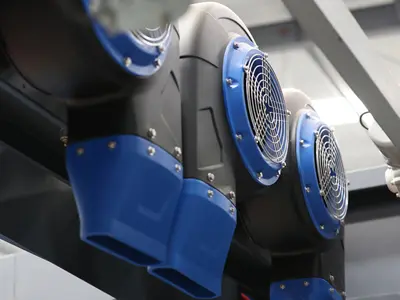

    Big power fan drying motor

    4pcs*5.5KW high pressure drying motor, quick drying and ash deposition, low failure rate and long life time;

  • industrial car wash machine

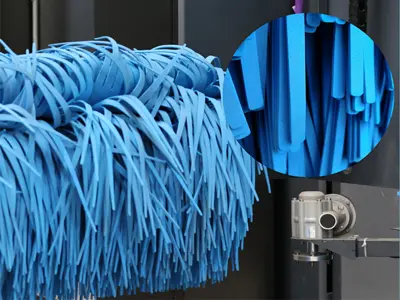

    EVA soft brush

    Brush self-cleaning technology, no water, no dust, no sand, not easy to deform, soft without damaging car paint;

  • carwash equipment supplier
    SITI waterproof reducing motor

    Italy SITI internaional brand, fully enclosed integrated design, waterproof grade IP68, lifetime 20 years;

  • car wash equipment and supplies
    SIEMENS control system

    Germany SIEMENS famous brand, the system is stable, with low failure rate, long life time;

  • mobile car wash equipment packages
    PEPPERL+FUCHS sensor

    Germany P+F international brand, waterproof level IP69K, accurately measure the car driving distance, predict the car location;

  • touchless car wash equipment

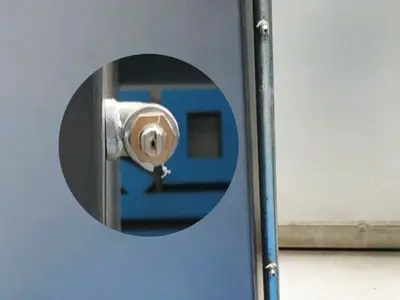

    Stainless steel pipe & nozzles

    Using high pressure fan drying motor, high wind speed, high pressure, to achieve rapid fan drying effect, perform segmented and powerful fan drying on the whole car;

The Difference of S1 S3 S9 Rollover Car Wash Machines

SHINEWASH Car Wash Machine Series: R1 (Economy), R3 (Mid-Range), R9 (Heavy-Duty)

1. S1 Model

The SHINEWASH S1 is tailored for small to medium car wash operations, featuring a 5-brush configuration and the ability to process 20–30 vehicles per hour. It uses just 150–200 liters of water per vehicle and operates at 0.5 kWh per wash, making it an energy-efficient option for cost-conscious businesses. Priced at $20,000, the S1 is equipped with reliable Japanese Mitsubishi PLC control systems and Banner photoelectric sensors to ensure stable and accurate performance.

2. S3 Model

Built for busier environments, the SHINEWASH S3 adds robust durability and precision with Siemens frequency converters and Pepperl+Fuchs proximity switches. It retains the same water consumption as the S1 (150–200L per vehicle) but introduces IP67-rated waterproof motors and Weidmüller terminal blocks for enhanced protection and electrical integrity. With a modular design that supports 60–80 washes per hour, the S3 is ideal for mid-sized commercial car wash businesses. The model is priced at $21,500.

3. S9 Model

The SHINEWASH S9 is engineered for industrial-scale operations, boasting a 20-year lifespan with a fully hot-dip galvanized steel frame. Capable of processing 80–100 vehicles per hour, it combines AI-powered collision avoidance, remote maintenance systems, and stable power delivery via Taiwanese Mean Well supplies. The inclusion of 1:60 reduction motors from Italy’s CITI/SJJ and a 380V/50Hz power system ensures reliable, continuous heavy-duty performance. The S9 is also priced at $21,500, offering exceptional value for high-volume facilities.

For more details of rollover car wash machines, you can read this page "What Is a Soft Touch Car Wash and Are Soft Touch Car Washes Safe?"


FAQs

What Makes the S3 Intelligent Automatic Car Washing Machine Unique?

The S3 model stands out with its unattended 24/7 operation, advanced import components, and intelligent systems like anti-collision, fault self-test, and emergency stop. It features 5 brushes combined with water washing, foam spraying, and water wax spraying systems, ensuring a thorough and safe clean for every vehicle.

How Energy-Efficient is the S3 Car Wash Machine?

The S3 features an intelligent frequency conversion system and liquid proportioning system, significantly reducing energy and water consumption. Its high-pressure drying motors (4 x 5.5KW) are designed for quick drying while maintaining low power usage, making the S3 both eco-friendly and cost-effective.

What Maintenance is Required for the S3 Car Wash Machine?

The S3’s fault self-test system minimizes maintenance needs by automatically detecting and alerting users to potential issues. Its hot-galvanized frame and stainless steel pipes are anti-corrosion and rust-resistant, extending the machine’s lifespan to 15-20 years with minimal upkeep.
