Rollover Car Wash Machine S9
Product Name:Rollover Car Wash Machine S9
Product Features:
●Brushes:5 Brushes
●Product Size(m/feet): L3.41*W3.7*H2.9(11.19*12.14*9.51)
●Max. Car Size(m/feet): L6*W2.1*H2.1(19.7*6.9*6.9)
●Min. Installation Size(m/feet): L8.5*W3.7*H3.1(27.9*12.14*10.2)
●Installation Ground Flatness: Deviation≤20mm
If any other specification requirements,all can customized.
Operating mode:The car does not move, the car washing machine reciprocates on the guide rail according to a certain program, and at the same time executes the car washing instruction.
Applicable Vehicles:Small vehicles such as sedans, SUV etc.
products+
hot products
How is the car wash machine working?

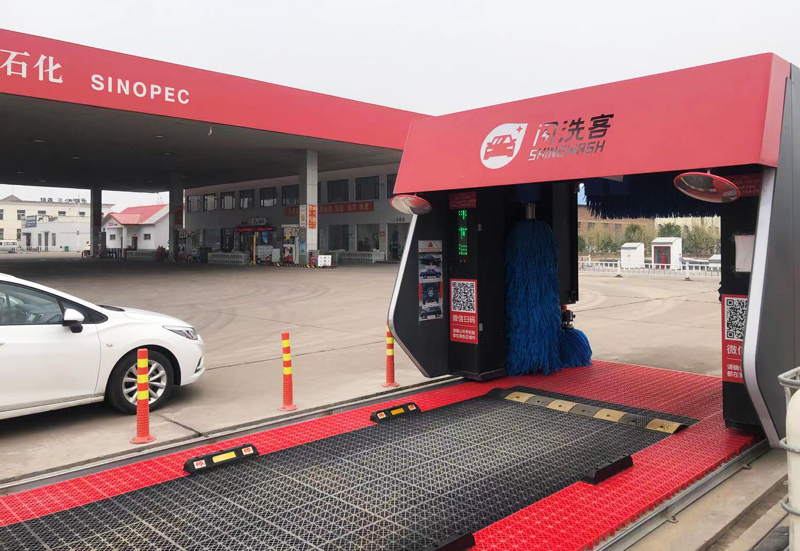

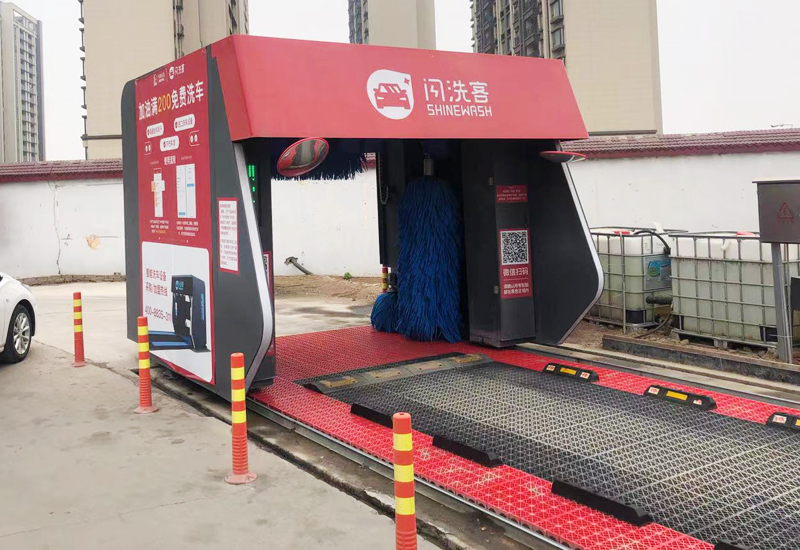

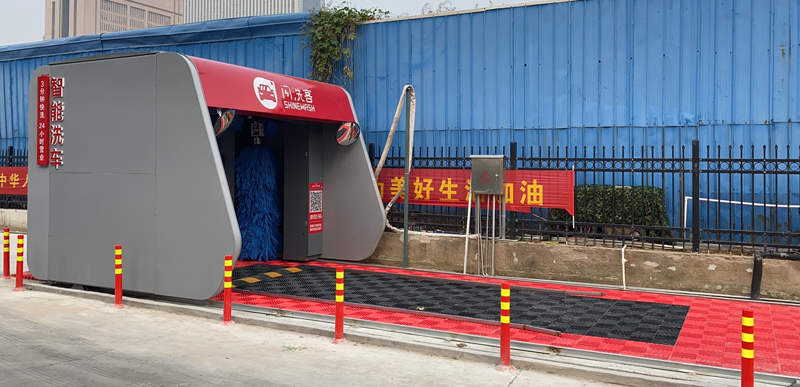

Rollover car washing equipment washing mode show:

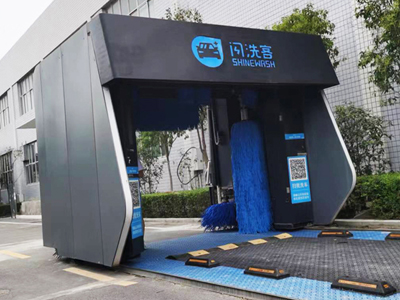

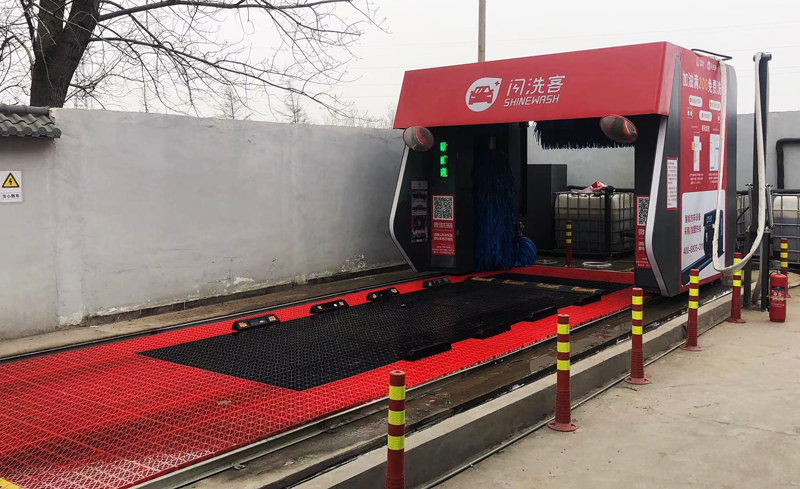

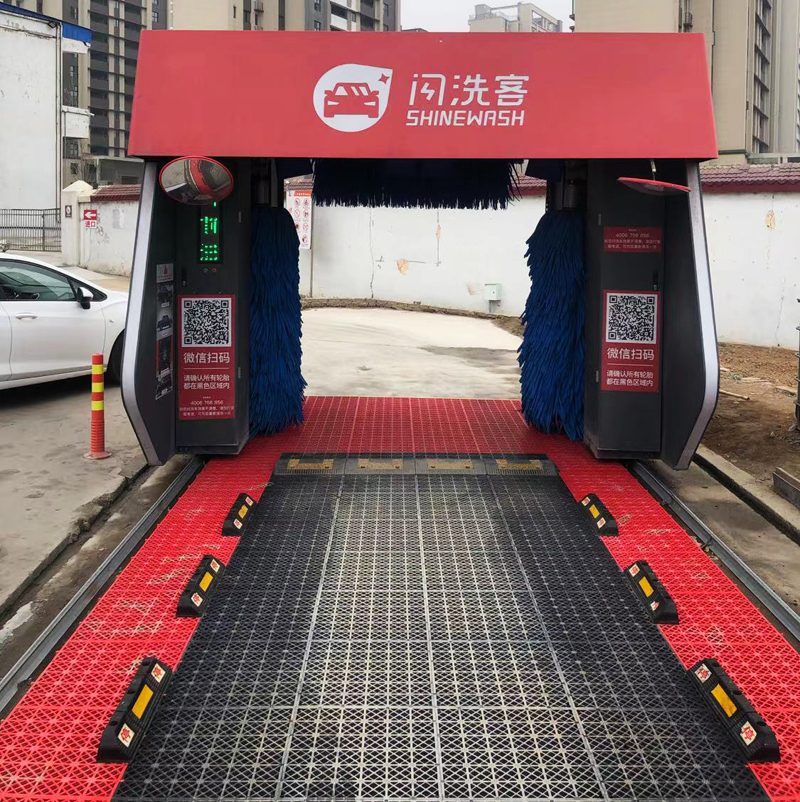

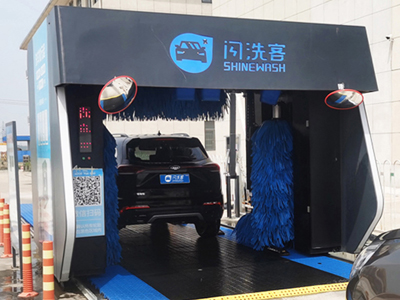

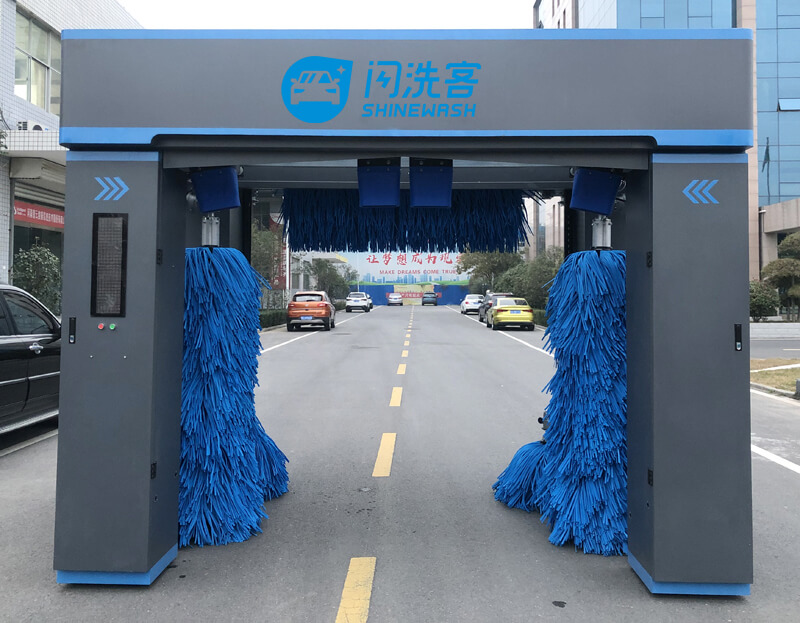

Gnatry car washer whole machine shown:
Product advantages:
●Fully automated,feel and smart
●Efficient washing,safe and convenient
●Intelligent and efficient control
●Control it yourself remotely
●Does not take up the space
Description:
● Adopts fully automatic PLC computer control system, which has faster operation
speed, lower failure rate, and can be upgraded remotely.
● Adopts ZFC alloy bending frame without welding.
●5 brushes (1 vertical lift top brush + 2 small vertical brushes + 2 large vertical brushes).
●Strong water cleaning system and foam pump system.
● Multiple functions: water washing---foam---brushing---weak water washing.
● With its own fault identification code, the fault is easy to identify and eliminate.
The main frame of the car washing machine is made of high quality normalized steel plate with a thickness of more than 3mm.the anti-rust process is firstly phosphatized and galvanized, With external high-temperature car paint,standard modular design of the whole machine is strong and never deformed;So the machine is absolutely can be guaranteed a long service life of 15 years.
Specification:
| Product Name | 5 Brush Rollover Car Wash Machine | Wash Time | 2.5-7min/car |
| Appicable Site | recommend to install outdoor | IP Rating | IP67 |
| Brush Quantity | 1 top brush+2 vertical brush+2 skirt brush | Customization | according to request, no extra cost |
| Material | galvanized steel/stainless steel | Average Water Consumption (adjustable) | 60-80L/car |
| Power Supply | 380V 50HZ 20KVA | Average Electricity Consumption (adjustable) | 0.6 degree/car |
| Power | 25KW | Shampoo Consumption (adjustable) | Approx. 10cc |
| Fan Power | 22KW | Water Wax Consumption (adjustablr | Approx. 10cc |
| Air Supply | Pressure 0.6-0.8Mpa/ Flow≥0.1m³/min |
Machine Size (m) -(feet) |
L3.41*W3.7*H2.9 |
| Water Supply | Pipeline DN25, Flow≥100L/min | 11.19*12.14*9.51 | |
| Compressed Air Pressure | 0.8MPA | Max. Car Size (m) -(feet) |
L6*W2.1*H2.1 |
| Ground Flatness | Deviation≤20mm | 19.7*6.9*6.9 | |
| Wash Mode | 4 modes | Warranty | 3 Year |
-
PLC control system
Fully automatic Mitsubishi PLC computer control system,faster operation speed,lower failure rate, and can be upgraded remotely.remote monitoring, remote diagnosis,remote control eliminate the need for a service technician and reduce the downtime and maintenance costs.
-
Imported quality EVA brush
The car body and tire parts are respectively configured with soft and hard brushes with different flexibility, and can be completely wrapped cleaning, it can not only ensure that the paint is not damaged, but also thoroughly clean the hub and other parts that are easy to accumulate dirt.The service life can reach 400,000 times. If 100 cars are washed every day, 36500 times a year, the service life is more than 10 years.
-
New intelligent air drying control system
Shinewash car washing machine adopts a 4-fan fixed air drying system, which can automatically adjust the air drying power
according to the vehicle model, reducing power consumption and saving energy under the condition of ensuring the air drying rate
of more than 95%. The main body of the fan adopts turbine type, with noise reduction of more than 60%. -
SITI water proof motor reducer
Italy SITI international brand,fully enclosed integrated design,waterproof grade IP68,life time is more than 20 years.
