automatic car wash tunnel machine price in india

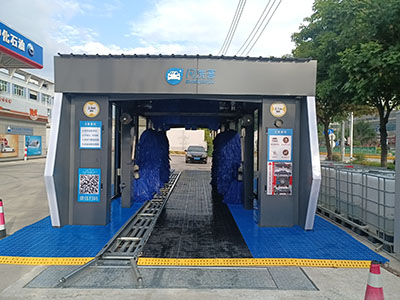

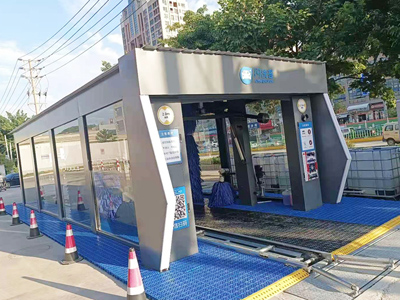

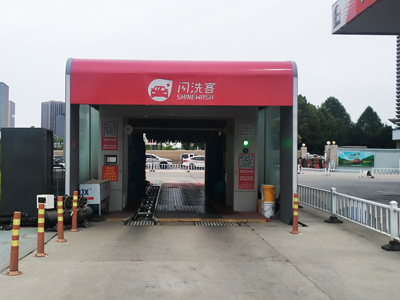

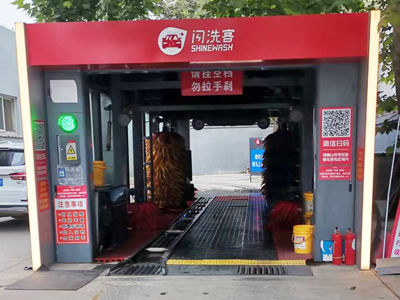

Shinewash Tunnel car wash machine Q7

Product Name: Shinewash Tunnel car wash machine Q7
Product Feature:
1. Unattended for 24 hours, saving time and economize labour.
2. More than 90% of the parts are imported, such as PLC, reducing motor, control system, etc.
3. Hot-galvanized mainly frame, module design, mortise and tenon structure.
4. Intelligent anti-collision system, self protection system, emergency stop system.
5. 7 brushes with water washing, foam spraying and water and wax spraying system.
6. Mathched with winter antifreeze drainage function to prevent the pipe freezing.

Chat Now Send-Mail >

products+

hot products

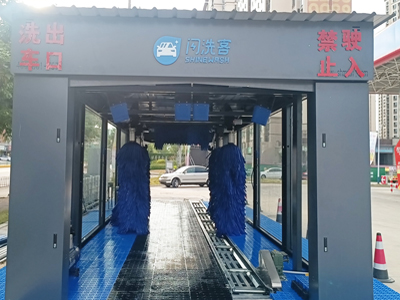

Q7 Tunnel car wash machine video:

Q7 Tunnel car wash machine advantages:

Fast car washing, high automation, safe and convenient, automate car wash operations without manual labor.
Novel appearance design, the overall structure of the machine adopts hot-dip galvanizing process, and then the surface is sprayed with plastic, which is corrosion-resistant and rust-proof, anti-corrosion period of more than 10 years..
Main configuration: Unique strong fixed air drying system, international special brush, imported electric control components.
Unique environmental protection water saving system, the new touch-screen operation display is simple and easy to understand, the automatic fault detection system makes the equipment more safe and reliable..
Fast cost recovery, high profit, high work efficiency, low failure rate and easy maintenance.

Q7 Tunnel car washing machine specification:

Applicable cars models	Sedans, SUVS, MPV, etc.	Fan dryer power	4 groups fan motor: 35KW
No. Of brushes	Top horizontal brush:1 pc Side big vertical brush: 4 pcs Skirt brush: 2 pcs	Fan drying mode	Fixed fan drying
Foaming system	Foam spraying	Average water consumption	80-150L/car
Wax system	Wax spraying	Voltage	3-phase,5 wires 380V/50HZ
Max. Washing size	L(unlimited)W2300H2100mm	Washing time	1.5min.—3min./car
Machine size	L10000W4000H3000mm	Compressed air pressure	0.8Mpa
Installation space	L22000W4500H3200mm	Electricity consumption	0.6KWH/car

Big power fan drying motor

4 groups fan drying motor: 35KW high pressure drying motor, quick drying and ash deposition, low failure rate and long life time;
EVA soft brush

Brush self-cleaning technology, no water, no dust, no sand, not easy to deform, soft without damaging car paint;

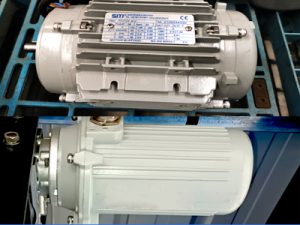

SITI waterproof reducing motor

Italy SITI internaional brand, fully enclosed integrated design, waterproof grade IP68, lifetime 20 years;

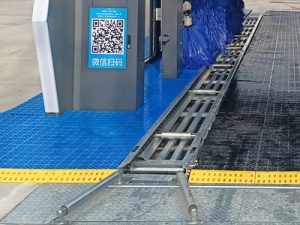

Adjustable guide rail

The guide rail angle could be adjusted according to the car，ensure the car could safe and get in the precise area.;

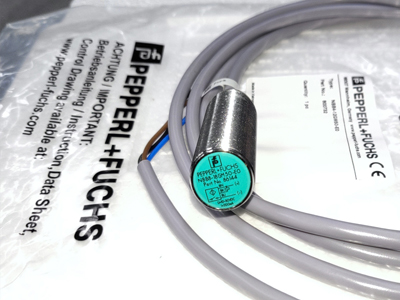

PEPPERL+FUCHS sensor

Germany P+F international brand, waterproof level IP69K, accurately measure the car driving distance, predict the car location;
Stainless steel pipe & nozzles

Using high pressure fan drying motor, high wind speed, high pressure, to achieve rapid fan drying effect, perform segmented and powerful fan drying on the whole car;

FAQs:

How do I install the Q7 Tunnel Car Wash system?

Installation of the Q7 system is straightforward, and we provide detailed instructions and professional support. Shinewash offers expert installation services if required to ensure that the system is set up correctly and efficiently.

Can I integrate the Q7 Tunnel Car Wash with a payment system?

Yes, the Q7 system can be integrated with various payment solutions, such as self-service kiosks, mobile payment apps, or cash systems, to allow customers to pay for their washes easily.
